Godt Begynt Implementation Guide (GB_IG) - FHIR Data Model

Version 0.2.0 Publish date 2022-07-11
Publisher: Egde (Egde Consulting AS) Author: Andy Harrison
IG namespace https://egdeconsulting.github.io/egde-health-gateway/GB_IG/ - -
Latest package definition tbd Last update 2022-07-15

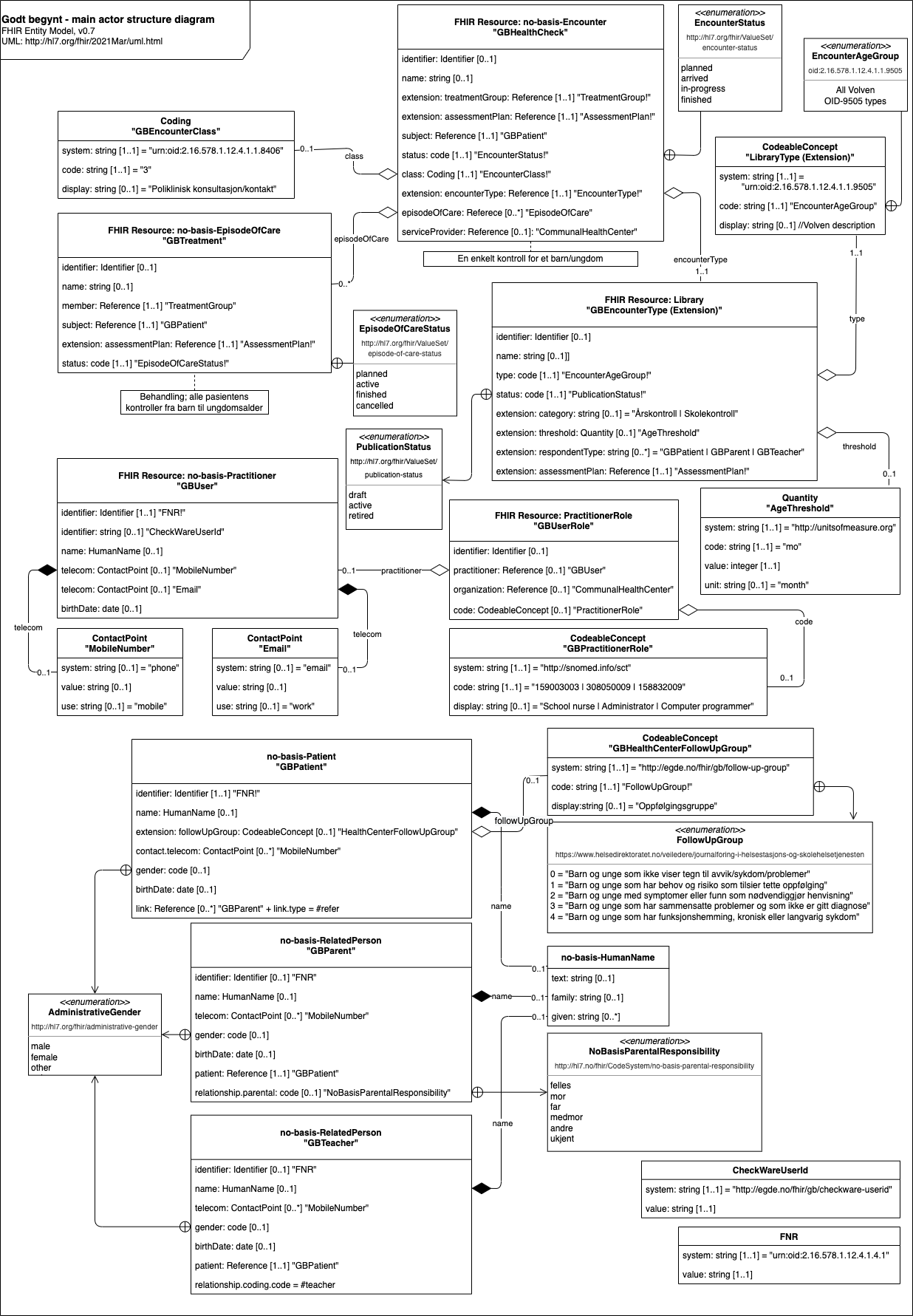

Health Check and actors

The main data structure in FHIR is centred around the “HealthCheck” modelled as an FHIR: Encounter together with a Treatment FHIR: EpisodeOfCare. Individual actors are modelled as follows:

Note that wherever possible Egde has built the Godt begynt profiles on Norwegian Basis profiles.

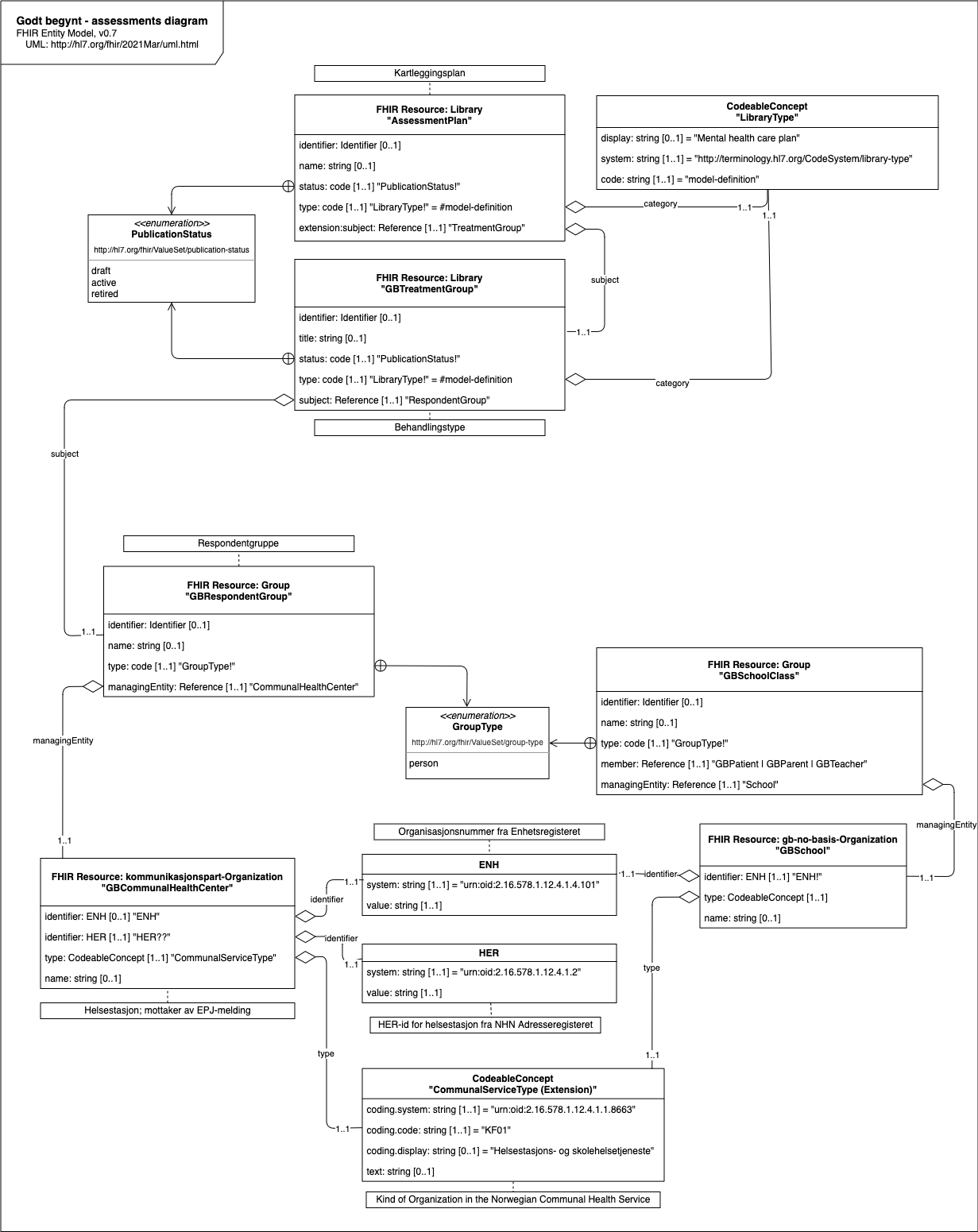

Assessment plans and respondents

In the Checkware setup used by Godt begynt we need to setup assessment plans and respondent groups which map to schools and school classes. The structures for this use FHIR: Library and FHIR: Group. The organization references are provided by the Norwegian profiles for FHIR: no-basis-organization** and FHIR: komminkasjonspart-Organization**. Note that no-basis-organization has been extended to include municipal Volven codes since these are missing from no-basis.

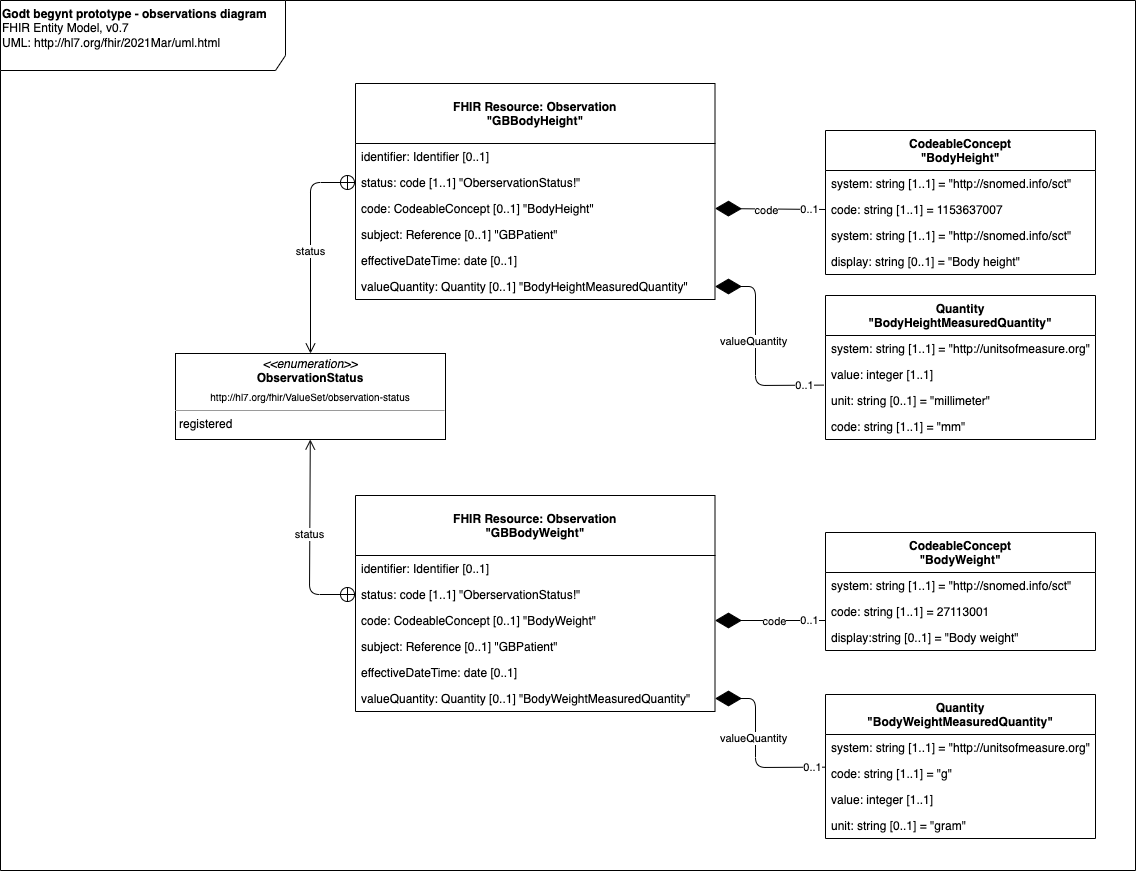

Weight and Height

There is a requirement to measure and log weight and height to track physical development of a child. The daat is captured in the control app and passed to the EHR/EPJ jopurnal system via an XML EDI message through NHN - see Elektronisk meldingsutveksling . This data is stored in GBWeight and GBHeight as FHIR: Observation

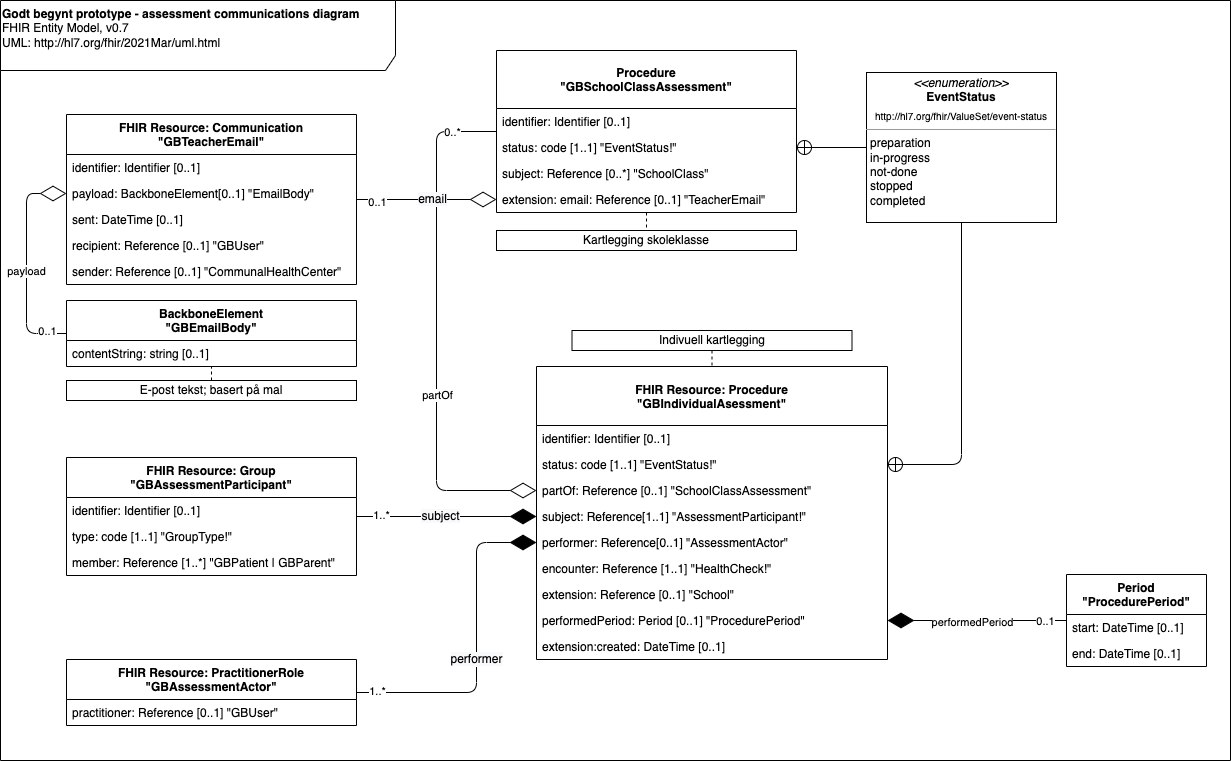

Communication of Assessments

The communication aspects and payloads for assessments are handled by a combination of FHIR: Procedure and FHIR:Communication resources:
